Text Detection

Detect text regions in images using the CRAFT model. Returns bounding boxes around detected text. To also read the text, see OCR, whose default detector is PaddleOCR's line detector.

Quick example

try (var detector = CraftTextDetector.builder().build()) {
    List<TextRegion> regions = detector.detect(Path.of("document.jpg"));
}

Full example

import io.github.inference4j.vision.CraftTextDetector;
import io.github.inference4j.vision.TextRegion;
import java.nio.file.Path;

public class TextDetection {
    public static void main(String[] args) {
        try (var detector = CraftTextDetector.builder().build()) {
            List<TextRegion> regions = detector.detect(Path.of("document.jpg"));

            for (TextRegion r : regions) {
                System.out.printf("[%.1f, %.1f, %.1f, %.1f] (confidence=%.2f)%n",
                    r.box().x1(), r.box().y1(),
                    r.box().x2(), r.box().y2(),
                    r.confidence());
            }
        }
    }
}

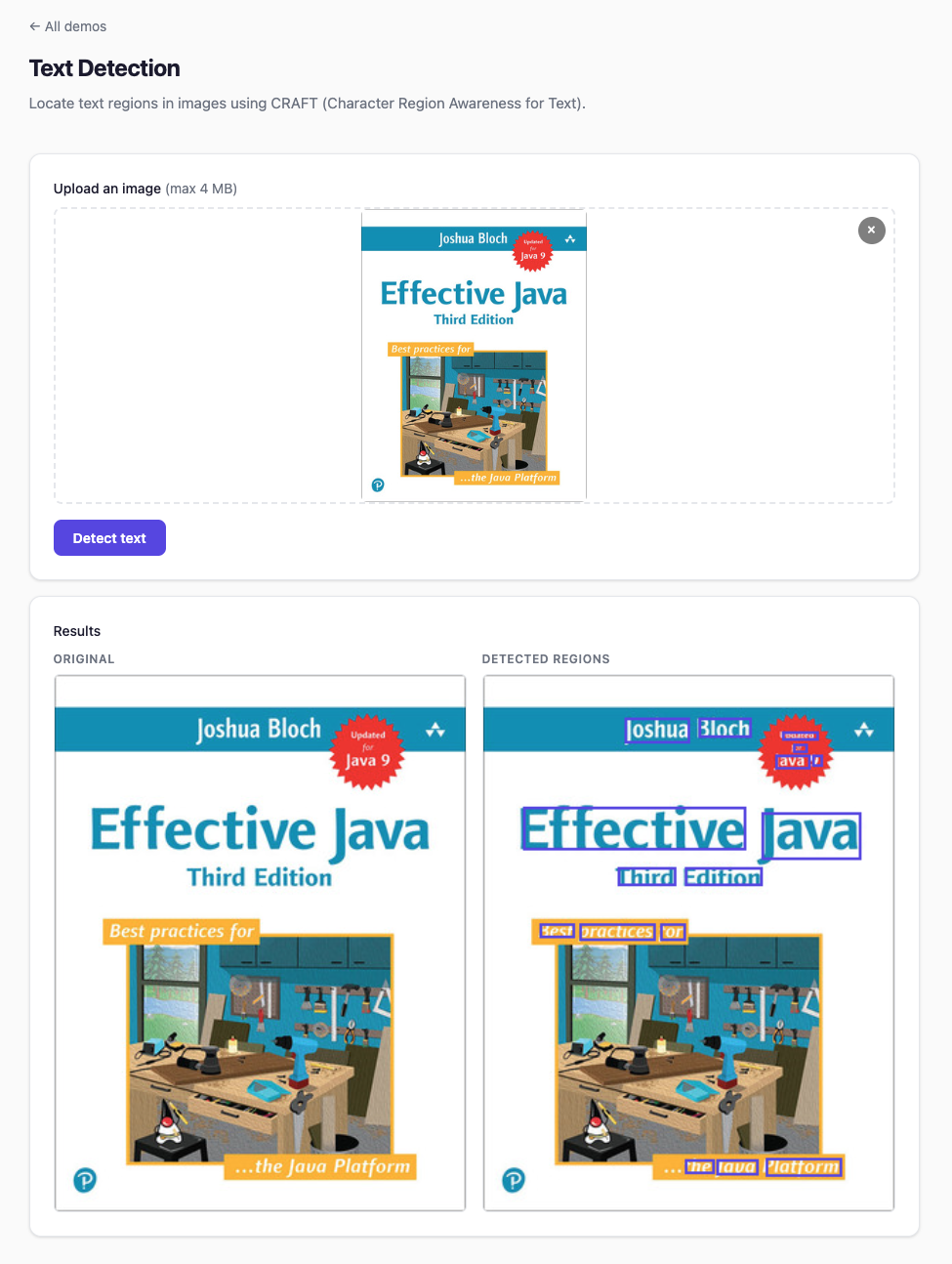

Screenshot from showcase app
Screenshot from showcase app

Custom thresholds

The defaults are those of the reference implementation (clovaai/CRAFT-pytorch). Lower textThreshold to find fainter text; raise linkThreshold if neighboring words merge into one region:

try (var detector = CraftTextDetector.builder()
        .textThreshold(0.5f)
        .linkThreshold(0.5f)
        .build()) {
    List<TextRegion> regions = detector.detect(Path.of("photo.jpg"));
}

detect(image, textThreshold, lowTextThreshold) overrides the two text thresholds for one call.

Builder options

Method Type Default Description
.modelId(String) String inference4j/craft-mlt-25k HuggingFace model ID
.modelSource(ModelSource) ModelSource HuggingFaceModelSource Model resolution strategy
.sessionOptions(SessionConfigurer) SessionConfigurer default ONNX Runtime session config
.inputName(String) String auto-detected Input tensor name
.targetSize(int) int 1280 Maximum long side of the model input
.magRatio(float) float 1.5 How much smaller images are scaled up, at most
.textThreshold(float) float 0.7 Minimum highest text score for a region to be kept
.linkThreshold(float) float 0.4 Link score above which characters are joined into words
.lowTextThreshold(float) float 0.4 Text score above which a pixel belongs to a character
.minComponentArea(int) int 10 Minimum region area, in score-map pixels (half the input resolution)

Result type

TextRegion is a record with:

Field Type Description
box() BoundingBox Axis-aligned box around the region
polygon() List<Point> The region's four corners, clockwise; rotated for rotated text
confidence() float The region's highest text score (0.0 to 1.0)

Regions are listed by confidence, highest first.

How CRAFT works

CRAFT (Character Region Awareness for Text detection) produces two score maps at half the input resolution:

  1. Text score — highlights character centers
  2. Link score — highlights the spacing between characters of a word

A pixel belongs to text where its text score exceeds lowTextThreshold or its link score exceeds linkThreshold. Each connected area whose highest text score reaches textThreshold becomes a region: its link-only pixels are removed, the rest is dilated in proportion to its thickness, and the smallest rectangle around it, rotated if the text is, gives the region's outline. Unlike YOLO-style detectors, CRAFT needs no NMS.

inference4j follows the reference implementation step by step, including its resizing (aspect ratio kept, padded to multiples of 32): on six test images (documents, a photo, a screenshot, a rotated receipt, a noisy scan) it returns the same 146 regions as the reference, with corners identical to a thousandth of a pixel.

Earlier versions

Earlier versions kept a region only if its mean text score reached textThreshold. A region's mean is around 0.55 even for clear text, so the default 0.7 found nothing, and lower thresholds kept almost everything (#130). Code that lowered the thresholds to work around this can return to the defaults.

Hardware acceleration

CRAFT benefits significantly from hardware acceleration:

Backend Latency Speedup
CPU 831 ms —
CoreML 153 ms 5.4x
try (var detector = CraftTextDetector.builder()
        .sessionOptions(opts -> opts.addCoreML())
        .build()) {
    detector.detect(Path.of("document.jpg"));
}

Tips

  • Both Path and BufferedImage inputs are supported.
  • Images are resized keeping their aspect ratio (scaled up by at most magRatio, long side at most targetSize) and padded to multiples of 32 (VGG16 backbone requirement).
  • CRAFT detects text locations, not text content. For full OCR, use OcrPipeline; CRAFT can be its detector, which reads each word separately.
  • Coordinates are in the original image's pixel space.
