Depth Estimation¶

Predict how far every pixel is from the camera using a single ordinary photograph — no stereo pair, no depth sensor. Useful for background blur, occlusion-aware compositing, 3D effects, and scene understanding.

Quick example¶

try (var estimator = DepthAnythingEstimator.builder().build()) {
    DepthMap depth = estimator.estimate(Path.of("room.jpg"));
}

Full example¶

import io.github.inference4j.vision.Colormap;
import io.github.inference4j.vision.DepthAnythingEstimator;
import io.github.inference4j.vision.DepthMap;
import io.github.inference4j.vision.ImageAnnotator;
import java.nio.file.Path;

public class DepthEstimation {
    public static void main(String[] args) throws Exception {
        try (var estimator = DepthAnythingEstimator.builder().build()) {
            DepthMap depth = estimator.estimate(Path.of("cat.jpg"));

            System.out.printf("Size: %d x %d%n", depth.width(), depth.height());
            System.out.printf("Range: %.3f to %.3f%n", depth.min(), depth.max());

            // Larger values are closer to the camera
            System.out.printf("Centre depth: %.3f%n",
                depth.at(depth.width() / 2, depth.height() / 2));

            ImageAnnotator.save(depth.toImage(Colormap.TURBO), Path.of("depth.png"));
        }
    }
}

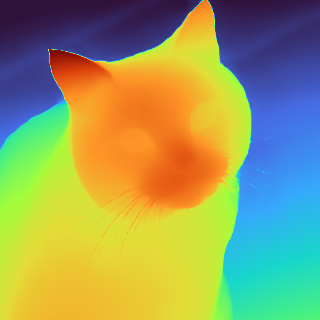

Depth map rendered with the Turbo colormap — Depth Anything V2 Small output, rendered with `Colormap.TURBO` — warm is near, blue is far

Reading the values¶

Depth is relative inverse depth, not metres:

Larger values are closer to the camera
The scale is model-dependent and differs between images, so compare values within one map, never across two
There is no absolute unit — this is ordering, not measurement

If you need metric depth in real-world units, this is not the right model.

Rendering¶

A depth map is hard to read as raw numbers. DepthMap renders directly to an image, rescaled to its own range:

BufferedImage gray  = depth.toImage();                   // grayscale
BufferedImage turbo = depth.toImage(Colormap.TURBO);     // high-contrast
BufferedImage vir   = depth.toImage(Colormap.VIRIDIS);   // colour-blind friendly

Colormap	When to use
`GRAYSCALE`	The image is data rather than a picture — feeding another process, thresholding
`TURBO`	Maximum contrast between near and far. Best default for looking at depth
`VIRIDIS`	Perceptually uniform and colour-blind friendly. Best for anything published

Builder options¶

Method	Type	Default	Description
`.modelId(String)`	`String`	`inference4j/depth-anything-v2-small`	HuggingFace model ID
`.modelSource(ModelSource)`	`ModelSource`	`HuggingFaceModelSource`	Model resolution strategy
`.sessionOptions(SessionConfigurer)`	`SessionConfigurer`	default	ONNX Runtime session config
`.inputName(String)`	`String`	auto-detected	Input tensor name
`.targetSize(int)`	`int`	`518`	Long-side resize target, rounded up to a multiple of 14

Result type¶

DepthMap is a record with:

Field	Type	Description
`values()`	`float[][]`	Per-pixel depth as `[height][width]`
`width()`	`int`	Map width, always matching the input image
`height()`	`int`	Map height, always matching the input image

Plus at(x, y), min(), max(), toImage() and toImage(Colormap).

How Depth Anything V2 works¶

A ViT backbone with a DPT decoder head, trained on a large mix of labelled and pseudo-labelled images. It predicts a dense depth value per patch, which the decoder upsamples to a full-resolution map.

The image is resized so its longer edge reaches targetSize with aspect ratio preserved, then both dimensions are rounded up to a multiple of 14 — the ViT patch size. Depth is predicted at that working resolution and bilinearly resampled back, so DepthMap coordinates always match the image you passed in.

Available models¶

Model	Parameters	Notes
`inference4j/depth-anything-v2-small`	~25M	Default, and the only variant currently hosted

Depth Anything V2 also ships Base (~98M) and Large (~335M) variants. They share the same graph and the same input and output contract, so they work through this wrapper without code changes — but they are not hosted under the inference4j org yet. To use one, point .modelId(...) at another source and supply a model.onnx at the repository root:

try (var estimator = DepthAnythingEstimator.builder()
        .modelSource(new LocalModelSource(Path.of("/models")))
        .modelId("depth-anything-v2-base")
        .build()) {
    DepthMap depth = estimator.estimate(image);
}

Hardware acceleration¶

try (var estimator = DepthAnythingEstimator.builder()
        .sessionOptions(opts -> opts.addCoreML())
        .build()) {
    estimator.estimate(Path.of("room.jpg"));
}

Tips¶

Both Path and BufferedImage inputs are supported.
Raising targetSize recovers finer detail at roughly quadratic cost. Lower it for faster throughput on large batches.
The output always matches your input dimensions, so a DepthMap can be indexed with the same coordinates as the source image.
To composite by depth, threshold on a value read from the map itself — a fixed constant will not transfer between images, because the scale is per-image.
